Water-water warmtepompen

IBK beschikt met het fabricaat Clint over een uitgebreide range water-water warmtepompen met scroll-, schroef en centrifugaal compressoren. In deze range hebben we machines met platenwarmtewisselaars maar ook met Shell&Tube wisselaars. Standaard worden de machines geleverd met laag GWP koudemiddel R452B. Maar ook andere koudemiddelen met een lage GWP zijn voor deze warmtepompen beschikbaar. De warmtepompen zijn breed inzetbaar en worden onder andere toegepast voor WKO toepassingen en voor aansluiting op koudwaternetten en drycoolers.

Meer informatie

Interesse in één van onze producten? Vraag om een advies!Want pas wanneer we alles van jouw project weten en de situatie écht begrijpen, kunnen we de beste oplossing voorstellen.

Water-water warmtepomp aanvragen

55.0-195 kW
16.0-55.0 Ton

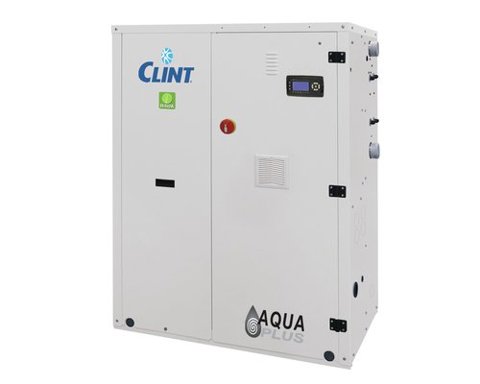

CWW/K 182-P÷604-P

WATERCOOLED LIQUID CHILLERS AND HEAT PUMPS WITH SCROLL COMPRESSORS AND PLATE EXCHANGERS

The CWW/K 182-P÷604-P liquid Chillers and Heat Pumps, with R410A refrigerant, are designed for medium-sized domestic or industrial systems which require medium power, space-saving units and quiet operation. This range is ideal for indoor installation and, equipped with a self-contained structure, it reduces the overall dimensions to a minimum while at the same time making installation and maintenance operations easier. These units are used to remove the heat developed during industrial processes or, combined with Fan Coil units, for the air conditioning of the rooms. They can be supplied with Modbus RTU protocol through RS485 serial interface. Equipped with polyester powder plate painting structure, Scroll compressors and plate exchangers, these units have cooling and hydraulic circuits complete with everything necessary for quick installation and high energy efficiency, even in the version with tank and pump; and a series of accessories, factory fitted or supplied separately, like desuperheater and total heat recovery, rounds off the variety of equipment in this product range.

The units are compliant to the ErP Regulation.

On request, units can be supplied with R452B or R454B refrigerant.

Versies

  • CWW/K - Cooling only
  • CWW/K/WP - Reversible Heat Pump

Vermogen

  • 55.0-195 kW
  • 16.0-55.0 Ton

Kenmerken

  • Structure with supporting frame, made of galvanised sheet metal with additional protection provided by polyester powder coating.
  • Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
  • Condenser AISI 316 stainless steel braze welded plates type with one circuit on the refrigerant side and one on the water side in 182-P÷453-P models; with two independent circuits on the refrigerant side and one on the water side in 524-P÷604-P models.
  • Evaporator AISI 316 stainless steel braze welded plates type with one circuit on the refrigerant side and one on the water side in 182-P÷453-P models; with two independent circuits on the refrigerant side and one on the water side in 524-P÷604-P models, complete with water differential pressure switch.
  • R410A refrigerant. On request R452B or R454B refrigerant.
  • Electrical board includes: main switch with door safety interlock, fuses, thermal protection relays for compressors, interface relay and terminals for external connections.
  • Microprocessor control and regulation system.
