CHV/H/HE/MC 804-P÷2406-P

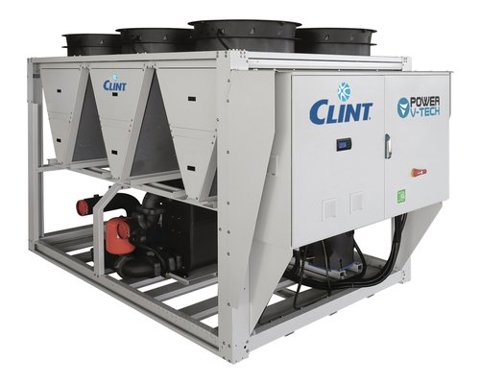

High efficiency air cooled liquid chillers with axial fans, Scroll compressors and plate exchanger
The high energy efficiency liquid Chillers of the CHV/H/HE/MC 804-P÷2406-P series, with HFO-R1234ze refrigerant, are designed to satisfy the needs of medium and wide-sized service sector or industrial ambients.
They are used, combined with Fan Coil units, for the air conditioning of the rooms or to remove the heat developed during industrial processes.
Microchannel condensing coils on standard version provide higher efficiency levels (EER), as they ensure better heat exchange than conventional coils. Copper/aluminum coils are available on dedicated versions. Inverter control is available, as accessory, on circulating pumps and fans (EC Inverter) for a further efficiency improvement.
The units are characterized by multi-compressor design on double cooling circuit, to reach high energy performances, reduction of current at start-up, elimination of inertial tanks and excellent silent functioning.
Are available as option the new EC Inverter fans with high available static pressure and efficiency. The units are compliant to the ErP Regulation.
Versies
- CHV/H/HE/MC - High efficiency cooling only with MICROCHANNEL condensing coils
- CHV/H/HE/MC/SSL - High efficiency super silenced cooling only with MICROCHANNEL condensing coils
- CHV/H/HE - High efficiency cooling only with CuAl condensing coils
- CHV/H/HE/SSL - High efficiency super silenced cooling only with CuAl condensing coils
Vermogen
- Koelen 213 - 600 kW
Kenmerken
- Structure with supporting frame, made of galvanised sheet metal with additional protection provided by polyester powder coating.
- Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
- Axial fans directly coupled to a three-phase electric motor with external rotor. A safety fan guard is fitted on the air flow discharge. They are also fitted with an electronic proportional device for continuous and efficient operation of the unit with an outdoor air temperature as low as -20 °C in cooling. It also allows to reduce the sound level, especially at night.
- Condenser made of aluminum MICROCHANNEL coils or copper tube and aluminum finned coils.
- Evaporator AISI 316 stainless steel braze welded plates type with two independent circuits on the refrigerant side and one on the water side, complete with water differential pressure switch.
- Cooling circuit shut-off valve on liquid line.
- Electronic expansion valve.
- Electronic high and low pressure gauges.
- HFO-R1234ze refrigerant.
- Electrical board includes: main switch with door safety interlock, fuses or magnetothermic switches, thermal protection relays for compressors and thermocontacts for fans.
- Microprocessor control and regulation system.
- Units can be selected in standard, silenced and super-silenced versions. The super-silenced version includes: reduced fans speed: to guarantee the same cooling capacity compared to the standard version, the SSL version can include an increased number of modules; soundproofing enclosure for compressors: consisting of an external galvanised sheet metal enclosure, painted and internally coated with soundproofing material.
