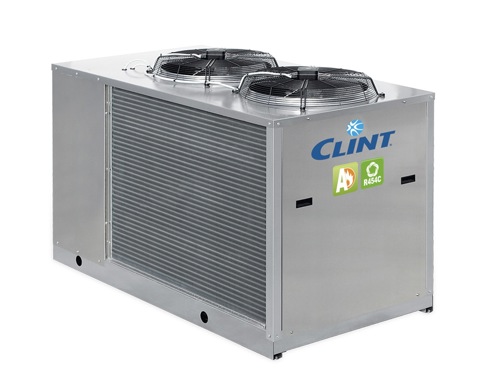

CHA/F/ML/WP 52÷92
A CLASS ENERGY EFFICIENCY AIR COOLED REVERSIBLE HEAT PUMPS FOR HIGH TEMPERATURE HOT WATER PRODUCTION WITH AXIAL FANS, SCROLL COMPRESSORS AND PLATE EXCHANGER
This innovative series of high-efficiency heat pumps is designed for hot water production up to 65 °C and reliable operation at outdoor temperatures down to -20 °C. Equipped with scroll compressors and axial fans, the units ensure consistent and efficient performance under demanding conditions.
Developed to create and maintain optimal comfort throughout the year, the system is particularly suitable for areas with high daily occupancy, such as commercial and service-sector environments. It independently manages winter heating, summer cooling and the production of high-temperature domestic hot water.
Thanks to its compact and thoughtfully engineered design, installation is straightforward and efficient. By using only electrical energy combined with the heat naturally present in the ambient air, the system transfers heat effectively to indoor spaces. This results in substantial energy savings, high reliability and fast start-up times.
The units comply with the ErP Regulation.
Versies
- CHA/ F/ML/WP - Reversible heat pump
Vermogen
- 20-29 kW Verwarmingscapaciteit
- 17-25 kW Koelcapaciteit
Kenmerken
- Structure with supporting frame, in peraluman and galvanized sheet.
- Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
- Axial fans with low ventilation and special wing profile, directly coupled to external rotor motors.
- Condenser made of a finned coil with copper pipes and aluminium fins with hydrophilic treatment.
- Evaporator AISI 316 stainless steel braze welded plates type, completed with flow switch and antifreeze heater.
- R454C refrigerant.
- The condensing / evaporating control is included: electronic proportional device that ensures efficient and continuous functioning of the unit with outside air temperature down to –20 °C in cooling mode and up to an outside air temperature of 40 °C in heat pump operation. It also allows to reduce the sound level especially at night. It consists of a fans speed controller with continuous speed regulation, an high/low pressure transducer on cooling circuit and an electrical heater on electrical board.
- Functioning in heating mode with outside air temperature down to -20 °C and up to +40 °C for domestic hot water production in summer.
- The production of hot water up to 65 °C is reachable with outside air temperature down to -5 °C. With outside air temperature of -20 °C the reachable production of hot water is up to 52 °C.
- Advanced functions: remote set-point with 0-10V signal, remote set-point with 4-20 mA signal, remote signal for second set-point activation, demand limit from digital input, management of hybrid systems, management of domestic hot water production.
- Electrical board includes: main switch with door safety interlock, fuses, thermal protection relays for compressors and thermocontacts for fans.
